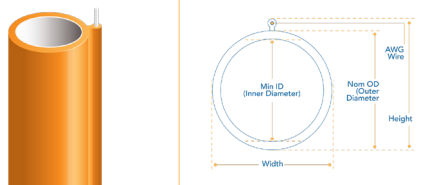

Pinpoint
- A proven, reliable method for locating buried duct
- The PinPoint 18 AWG locate wire is encased in HDPE providing a corrosion-resistant conductor
- Extremely functional at a wide range of frequencies, compatible with industry-standard locating equipment
- No special tools are required to couple the duct and the PinPoint wire; standard coupling methods can be utilized
INSTALLATIONS: Plow, Trench, Directional Bore
SIZE RANGE: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
Standard
- MATERIAL Manufactured from flexible HDPE (High Density Polyethylene)
- SPECIFICATIONS Wire is 18 AWG copper clad 30.041 ohm/1,000 ft 68°F
- CONDUIT MARKINGS Permanent marking along conduit includes: material, relevant standards, production info, and sequential feet or meter markings. Custom options available
Options
- PRE-INSTALLED TAPE Factory pre-installed Bull-Line™ Pull Tape with EVEN-LOAD™ ensures extra slack at any access point throughout the reel. Available 500lb–6,000lb tensile strength or locatable.
- CO-EXTRUDED LINING SILICORE ULF (Ultra-Low Friction) is co-extruded inside the HDPE wall creating a slick, permanent, interior lining. With a coefficient of friction 60% lower than standard HDPE conduit without the aid of wet lubricants, SILICORE ULF exhibits no loss in performance over time or in extreme temperature conditions.
- INTERNAL RIBS Internal ribs available upon request
- UV PROTECTANT Available for UV exposure applications (Aerial, Lashed, or External Tray)
