Microduct Locatable 27/20

STANDARD DETAILS

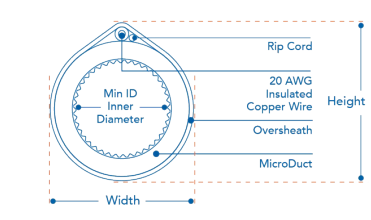

• DETAILS: MicroDucts are smaller diameter conduit, manufactured from flexible HDPE (High Density Polyethylene). Includes a 20 AWG insulated copper wire. MicroDuct dimensions and performance meets or exceeds the requirements of Telcordia GR-3156
• INSTALLATION TYPES: Plow, Trench, Directional Bore, MicroTrench
• FILL RATIO: Choose the correct MicroDuct size based on the Outer Diameter (OD) of desired MicroCable. Dura-Line recommends a fill ratio of 50% to 75% for optimal cable placement performance. Several factors impact jetting distance including the condition of route, bends, and equipment.
• COLORS: MicroDucts available in solid colors Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Lilac, Pink, Aqua, Terra Cotta, Lime Green, or custom colors with optional stripes
• CONDUIT MARKINGS: Permanent marking along MicroDuct includes: material, relevant standards, production info, and sequential feet or meter markings. Custom options available.
• CO-EXTRUDED LINING: SILICORE® ULF (Ultra-Low Friction) is co-extruded inside the HDPE wall creating a slick, permanent, interior lining. SILICORE® ULF exhibits no loss in performance over time or in extreme temperature conditions.
• INTERNAL RIBS: Standard (except 3.5mm ID which are designed with a standard smooth interior)
• RIP CORD(S): For easy opening of the oversheath

Options

• PRE-INSTALLED STRING: Factory pre-installed Pull String available in MicroDucts to aid in cable placement.
• PRE-INSTALLED FIBER: Fiber cable or cordage can be factory pre-installed in MicroDucts

Reel Specifications

• Reel Size: 42×31 in
• Standard lenght: 2000 Ft
• Reel Type: Plastic

CTS – DL FuturePath 1-way 27×20
