Futurepath

MicroDucts factory bundled with a polyethylene oversheath
Multiple pathways for one installation cost, allows flexibility and future growth
No special tools or equipment needed; installation uses the same as traditional conduit or innerduct
Multiple configurations available

Installation Type: Subdivided Conduit, Plow, Directional Bore, Tray, Overrides, Trench, MicroTrench

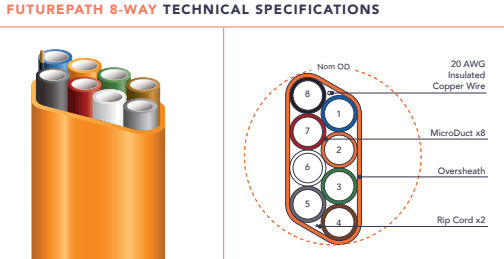

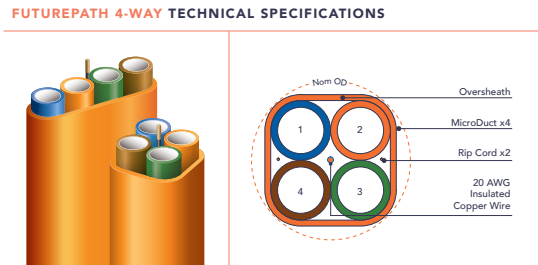

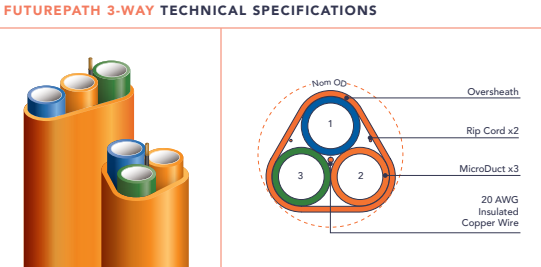

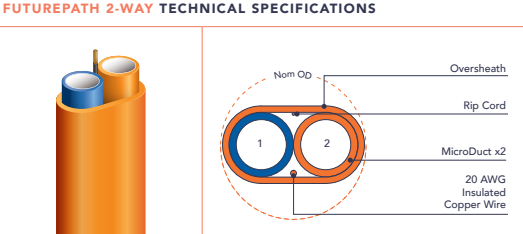

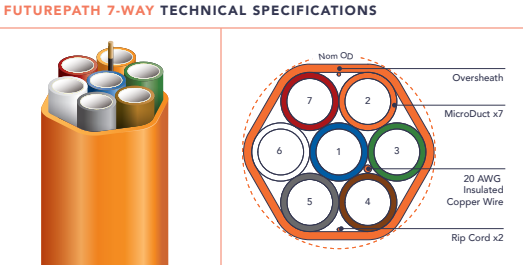

Configuration: 2-way, 3-way, 4-way, 7-way, 8-way, 10-way, 12-way, 19-way, 24-way

Standard

SPECIFICATIONS/DETAILS FuturePath is a unit of bundled MicroDucts. Manufactured from flexible HDPE (High Density Polyethylene)
FILL RATIO Choose the correct MicroDuct size based on the Outer Diameter (OD) of desired MicroCable. Dura-Line recommends a fill ratio of 50% to 75% for optimal cable placement performance. Several factors impact jetting distance including the condition of route, bends, and equipment.
CONDUIT MARKINGS Permanent marking along FuturePath includes: material, relevant standards, production info, and sequential feet or meter markings. Custom options available.
CO-EXTRUDED LINING SILICORE ULF (Ultra-Low Friction) is co-extruded inside the HDPE wall creating a ® slick, permanent, interior lining. With a coefficient of friction 60% lower than standard HDPE conduit without the aid of wet lubricants, SILICORE ULF exhibits no loss in performance over time or in extreme temperature® conditions.
INTERNAL RIBS Standard (except 3.5mm ID MicroDucts which are designed with a standard smooth interior)
LOCATE WIRE Includes a 20 AWG insulated copper wire
RIP CORDS For easy opening of the oversheath

Options

THICKER OVERSHEATH Available in most configurations to meet your needs for more rugged projects

Not sure this is the best option for you? Get in touch with us, we can demo the product or suggest alternatives that may fit your needs better.

The products we offer have been rigorously tested by one of our technical experts. If we can’t break it, then we sell it!
