Futurepath 24-way 8.5/6 mm
- MicroDucts factory bundled with a polyethylene oversheath
- Multiple pathways for one installation cost, allows flexibility and future growth
- No special tools or equipment needed; installation uses the same as traditional conduit or innerduct
- Multiple configurations available
Standard

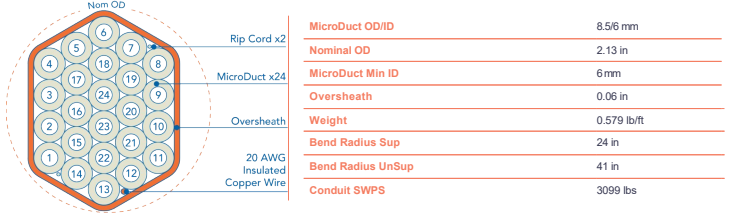

- SPECIFICATIONS/DETAILS: FuturePath is a unit of bundled MicroDucts. Manufactured from flexible HDPE (High Density Polyethylene)
- INSTALLATION TYPES: Subdivided Conduit, Overrides, Plow, Trench, Directional Bore, MicroTrench, Tray
- FILL RATIO: Choose the correct MicroDuct size based on the Outer Diameter (OD) of desired MicroCable. Dura-Line recommends a fill ratio of 50% to 75% for optimal cable placement performance. Several factors impact jetting distance including the condition of route, bends, and equipment.
- COLORS: Oversheath: Orange MicroDucts: Natural
- CONDUIT MARKINGS: Permanent marking along FuturePath includes: material, relevant standards, production info, and sequential feet or meter markings. Custom options availabe.
- CO-EXTRUDED LINING: SILICORE® ULF (Ultra-Low Friction) is co-extruded inside the HDPE wall creating a slick, permanent, interior lining. SILICORE® ULF exhibits no loss in performance over time or in extreme temperature conditions.
- INTERNAL RIBS: Standard (except 3.5mm ID MicroDucts which are designed with a standard smooth interior)
- LOCATE WIRE: Includes a 20 AWG insulated copper wire
- RIP CORD(S): For easy opening of the oversheath
Options
- THICKER OVERSHEATH Available in most configurations to meet your needs for more rugged projects
REEL SPECIFICATIONS
- REEL SIZE: 96 x 46 in
- STANDARD LENGTH: 5000 ft
- REEL TYPE: Steel
