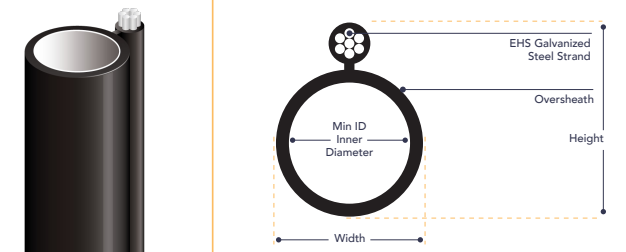

Figure-8
- Figure-8 construction with EHS (Extra High Strength) flooded galvanized support strand for one-step aerial placement
- HDPE has carbon black and antioxidents for maximum UV protection
- Extra high strength galvanized steel strand utilizes industry standard aerial strand hardware
- Installation uses the same tools and equipment as standard aerial installation practices
- Available with either 1/4″ or 3/8″ EHS galvanized strand
Standard
- MATERIAL Manufactured from flexible HDPE (High Density Polyethylene). The Oversheath is carbon black polyethylene with antioxidants for maximum UV protection
- SPECIFICATIONS EHS (Extra High Strength) Class A Flooded: 3/8″ (15,400lb Safe Working Pull Strength) or 1/4″ (6,650lb Safe Working Pull Strength) EHS Galvanized
- CONDUIT MARKINGS Permanent marking along conduit includes: material, relevant standards, production info, and sequential feet or meter markings. Custom options available.
- UV PROTECTANT Oversheath is carbon black polyethylene with antioxidants for maximum UV protection
Options
- PRE-INSTALLED TAPE Factory pre-installed Bull-Line™ Pull Tape with EVEN-LOAD™ ensures extra slack at any access point throughout the reel. Available 500lb–6,000lb tensile strength or locatable.
- CO-EXTRUDED LINING SILICORE ULF (Ultra-Low Friction) is co-extruded inside the HDPE wall® creating a slick, permanent, interior lining. With a coefficient of friction 60% lower than standard HDPE conduit without the aid of wet lubricants, SILICORE ULF exhibits no loss in performance over® time or in extreme temperature conditions.
